Calculate patch area — lsm_area

Identifies patch and calculates area in hectare.

Usage

lsm_area_patch(
  input,
  output = NULL,
  zero_as_null = FALSE,
  area_round_digit = 0,
  area_unit = "ha",
  map_patch_id = FALSE,
  map_patch_area = TRUE,
  map_patch_ncell = FALSE,
  map_patch_area_original = FALSE,
  map_patch_number_original = FALSE,
  nprocs = 1,
  memory = 300
)

Arguments

input: [character=""]
Habitat map, following a binary classification (e.g. values 1,0 or 1,NA for habitat,non-habitat) inside GRASS Data Base.
output: [character=""]
Map name output inside GRASS Data Base.
zero_as_null: [logical(1)=FALSE]
If TRUE, the function treats non-habitat cells as null; if FALSE, the function converts non-habitat zero cells to null cells.
area_round_digit: [logical(1)=FALSE]
If TRUE
nprocs: [numeric()]
memory: [numeric()]
region_input: [logical]
map_id: [logical(1)=FALSE]
If TRUE
map_ncell: [logical(1)=FALSE]
If TRUE
map_patch_original: [logical(1)=FALSE]
If TRUE
map_patch_number: [logical(1)=FALSE]
If TRUE

Examples

library(lsmetrics)
library(terra)

# read habitat data
r <- lsmetrics::lsm_toy_landscape(proj_type = "meters")

# plot

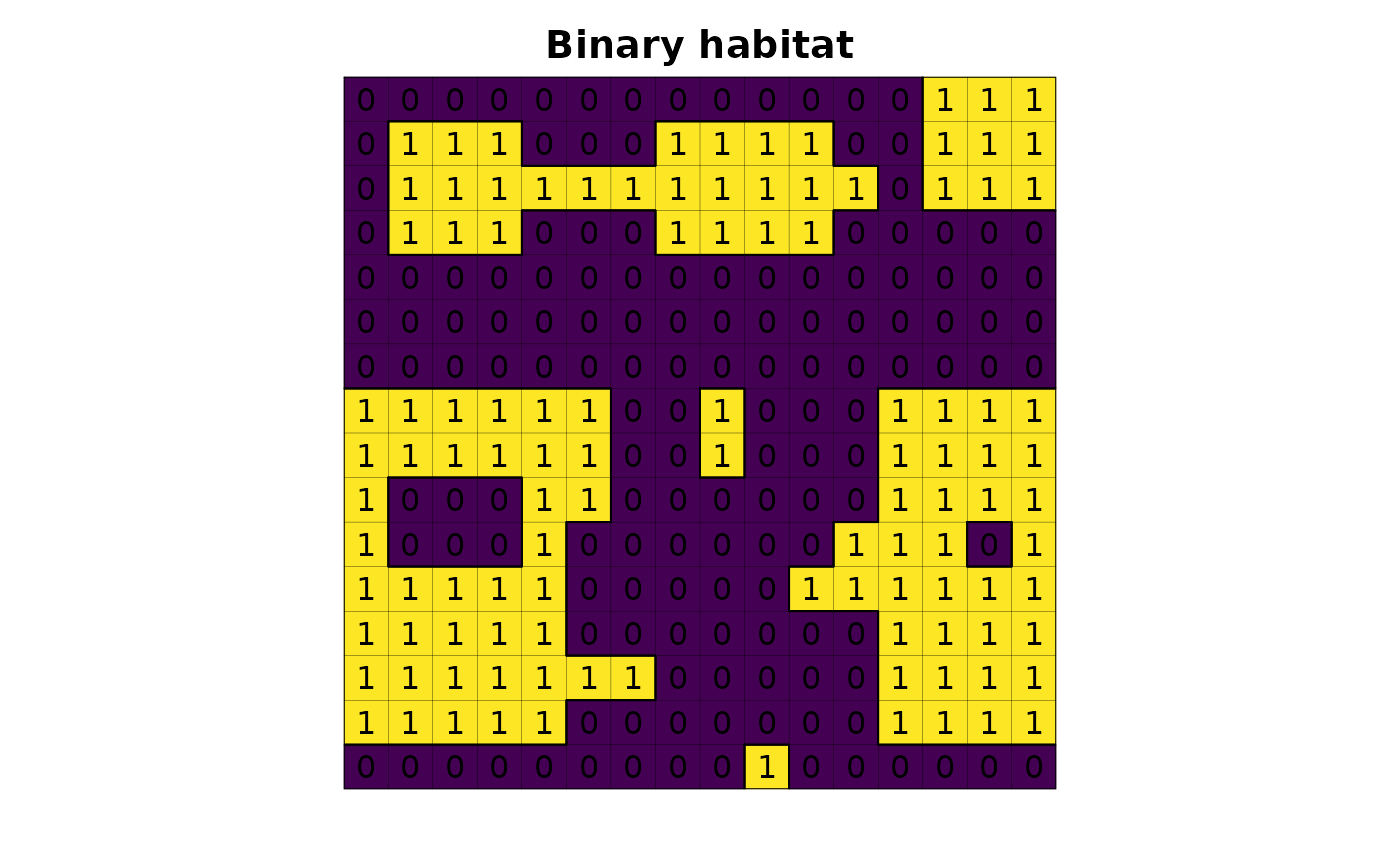

plot(r, legend = FALSE, axes = FALSE, main = "Binary habitat")
plot(as.polygons(r, dissolve = FALSE), lwd = .1, add = TRUE)
plot(as.polygons(r), add = TRUE)
text(r)

# find grass
path_grass <- system("grass --config path", inter = TRUE) # windows users need to find the grass gis path installation, e.g. "C:/Program Files/GRASS GIS 8.3"

# create grassdb
rgrass::initGRASS(gisBase = path_grass,
                  SG = r,
                  gisDbase = "grassdb",
                  location = "newLocation",
                  mapset = "PERMANENT",
                  override = TRUE)
#> gisdbase    grassdb
#> location    newLocation
#> mapset      PERMANENT
#> rows        16
#> columns     16
#> north       7525600
#> south       7524000
#> west        234000
#> east        235600
#> nsres       100
#> ewres       100
#> projection:
#>  PROJCRS["WGS 84 / UTM zone 23S",
#>     BASEGEOGCRS["WGS 84",
#>         ENSEMBLE["World Geodetic System 1984 ensemble",
#>             MEMBER["World Geodetic System 1984 (Transit)"],
#>             MEMBER["World Geodetic System 1984 (G730)"],
#>             MEMBER["World Geodetic System 1984 (G873)"],
#>             MEMBER["World Geodetic System 1984 (G1150)"],
#>             MEMBER["World Geodetic System 1984 (G1674)"],
#>             MEMBER["World Geodetic System 1984 (G1762)"],
#>             MEMBER["World Geodetic System 1984 (G2139)"],
#>             ELLIPSOID["WGS 84",6378137,298.257223563,
#>                 LENGTHUNIT["metre",1]],
#>             ENSEMBLEACCURACY[2.0]],
#>         PRIMEM["Greenwich",0,
#>             ANGLEUNIT["degree",0.0174532925199433]],
#>         ID["EPSG",4326]],
#>     CONVERSION["UTM zone 23S",
#>         METHOD["Transverse Mercator",
#>             ID["EPSG",9807]],
#>         PARAMETER["Latitude of natural origin",0,
#>             ANGLEUNIT["degree",0.0174532925199433],
#>             ID["EPSG",8801]],
#>         PARAMETER["Longitude of natural origin",-45,
#>             ANGLEUNIT["degree",0.0174532925199433],
#>             ID["EPSG",8802]],
#>         PARAMETER["Scale factor at natural origin",0.9996,
#>             SCALEUNIT["unity",1],
#>             ID["EPSG",8805]],
#>         PARAMETER["False easting",500000,
#>             LENGTHUNIT["metre",1],
#>             ID["EPSG",8806]],
#>         PARAMETER["False northing",10000000,
#>             LENGTHUNIT["metre",1],
#>             ID["EPSG",8807]]],
#>     CS[Cartesian,2],
#>         AXIS["(E)",east,
#>             ORDER[1],
#>             LENGTHUNIT["metre",1]],
#>         AXIS["(N)",north,
#>             ORDER[2],
#>             LENGTHUNIT["metre",1]],
#>     USAGE[
#>         SCOPE["Navigation and medium accuracy spatial referencing."],
#>         AREA["Between 48°W and 42°W, southern hemisphere between 80°S and equator, onshore and offshore. Brazil."],
#>         BBOX[-80,-48,0,-42]],
#>     ID["EPSG",32723]]

# import raster from r to grass
rgrass::write_RAST(x = r, flags = c("o", "overwrite", "quiet"), vname = "r", verbose = FALSE)

# patch area
lsmetrics::lsm_area_patch(input = "r",
                          map_patch_id = TRUE,
                          map_patch_area_original = TRUE,
                          map_patch_number_original = TRUE)
#> Error in lsmetrics::lsm_area_patch(input = "r", map_patch_id = TRUE, map_patch_area_original = TRUE,     map_patch_number_original = TRUE): object 'region_input' not found

# files
rgrass::execGRASS(cmd = "g.list", type = "raster")
#> r

# import from grass to r
r_patch_id <- rgrass::read_RAST("r_patch_id", flags = "quiet", return_format = "terra")
#> Error in sanitize_layername(name = vname[i], type = "raster", mapsets = msp,     ignore.stderr = ignore.stderr): r_patch_id not found in mapsets in search path: PERMANENT

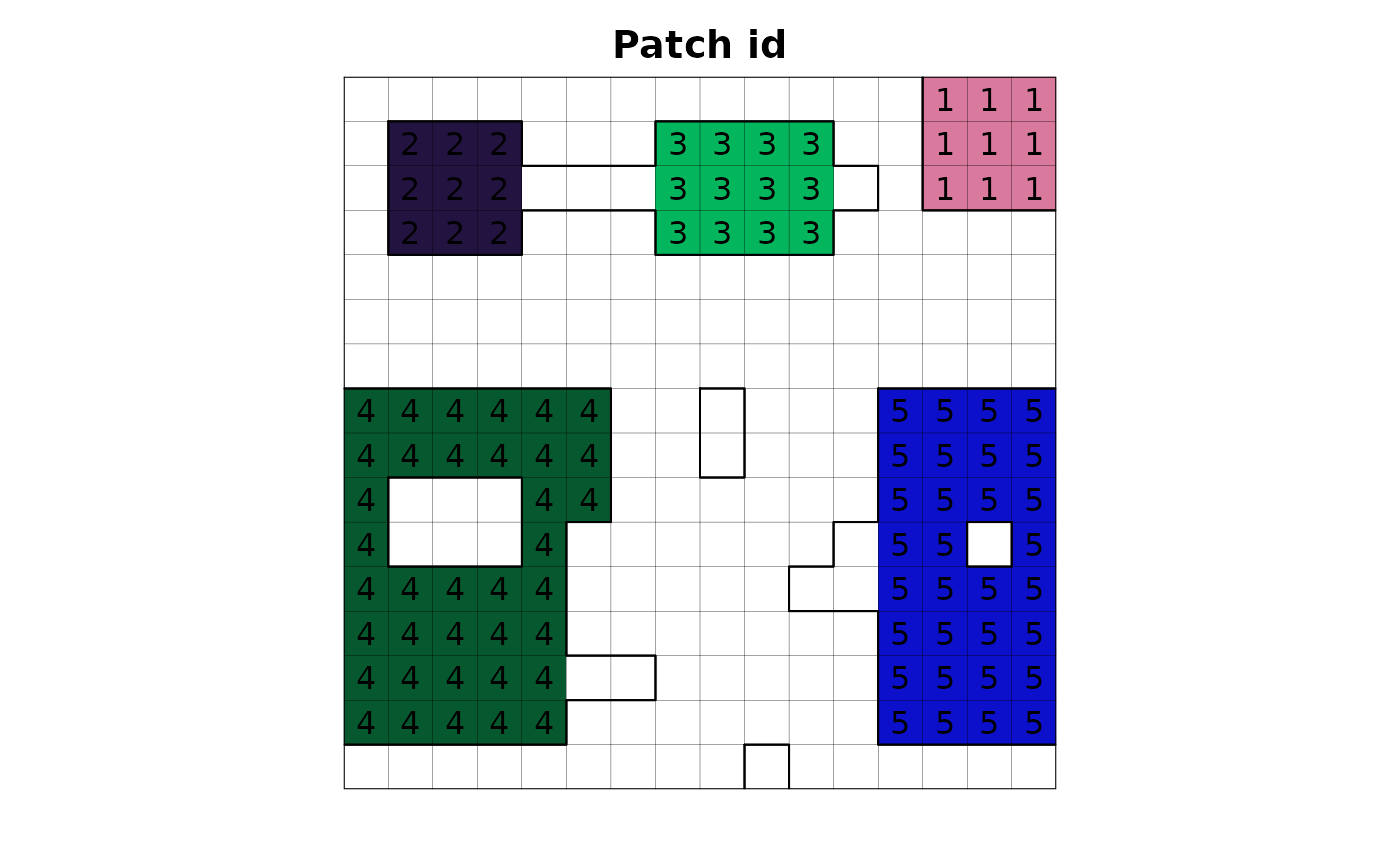

plot(r_patch_id, legend = FALSE, axes = FALSE, main = "Patch id")
#> Error in h(simpleError(msg, call)): error in evaluating the argument 'x' in selecting a method for function 'plot': object 'r_patch_id' not found
plot(as.polygons(r, dissolve = FALSE), lwd = .1, add = TRUE)
plot(as.polygons(r), add = TRUE)
text(r_patch_id)
#> Error in h(simpleError(msg, call)): error in evaluating the argument 'x' in selecting a method for function 'text': object 'r_patch_id' not found

r_patch_area <- rgrass::read_RAST("r_patch_area", flags = "quiet", return_format = "terra")
#> Error in sanitize_layername(name = vname[i], type = "raster", mapsets = msp,     ignore.stderr = ignore.stderr): r_patch_area not found in mapsets in search path: PERMANENT

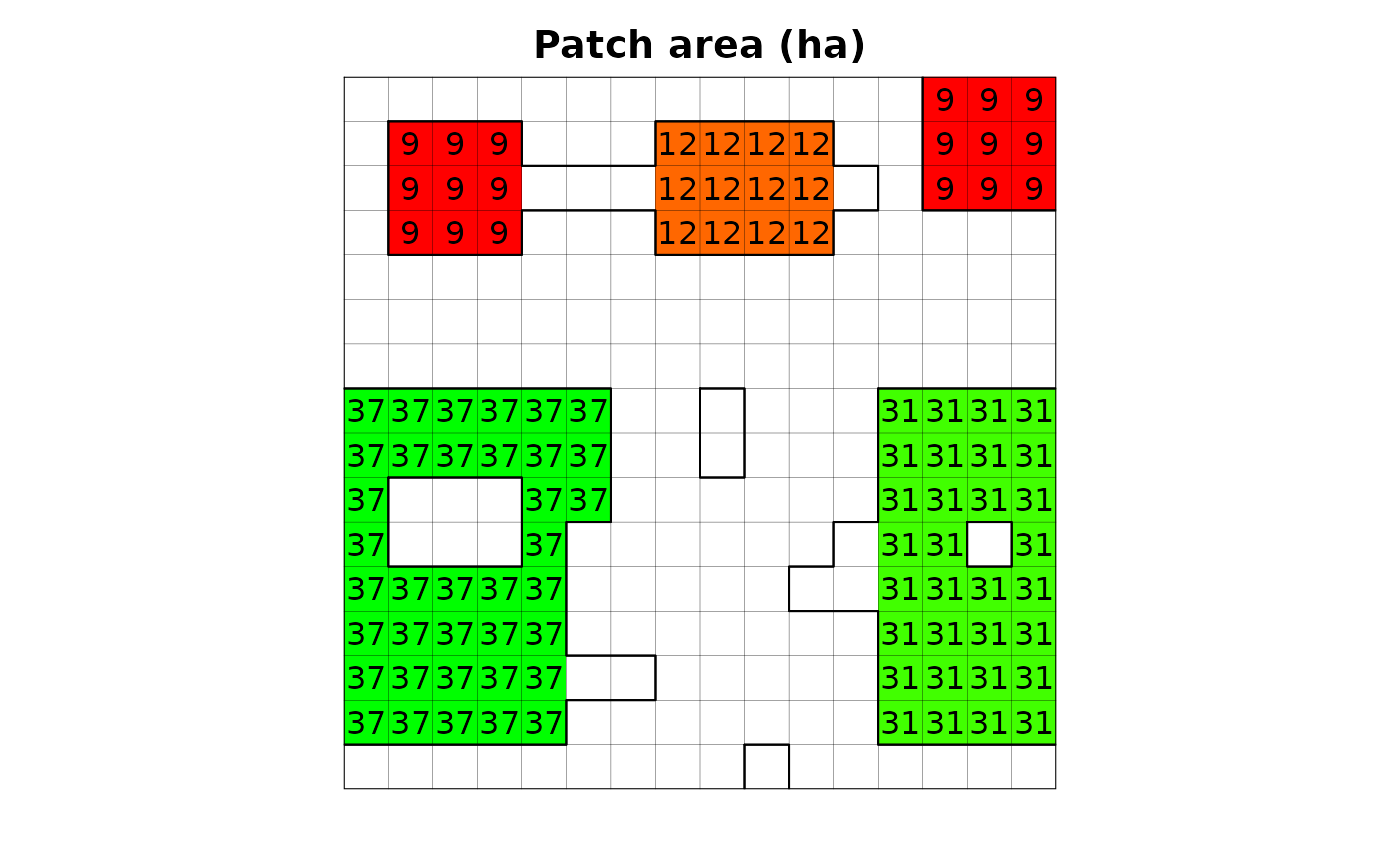

plot(r_patch_area, legend = FALSE, axes = FALSE, main = "Patch area (ha)")
#> Error in h(simpleError(msg, call)): error in evaluating the argument 'x' in selecting a method for function 'plot': object 'r_patch_area' not found
plot(as.polygons(r, dissolve = FALSE), lwd = .1, add = TRUE)
plot(as.polygons(r), add = TRUE)
text(r_patch_area)
#> Error in h(simpleError(msg, call)): error in evaluating the argument 'x' in selecting a method for function 'text': object 'r_patch_area' not found

r_patch_area_original <- rgrass::read_RAST("r_patch_area_original", flags = "quiet", return_format = "terra")
#> Error in sanitize_layername(name = vname[i], type = "raster", mapsets = msp,     ignore.stderr = ignore.stderr): r_patch_area_original not found in mapsets in search path: PERMANENT

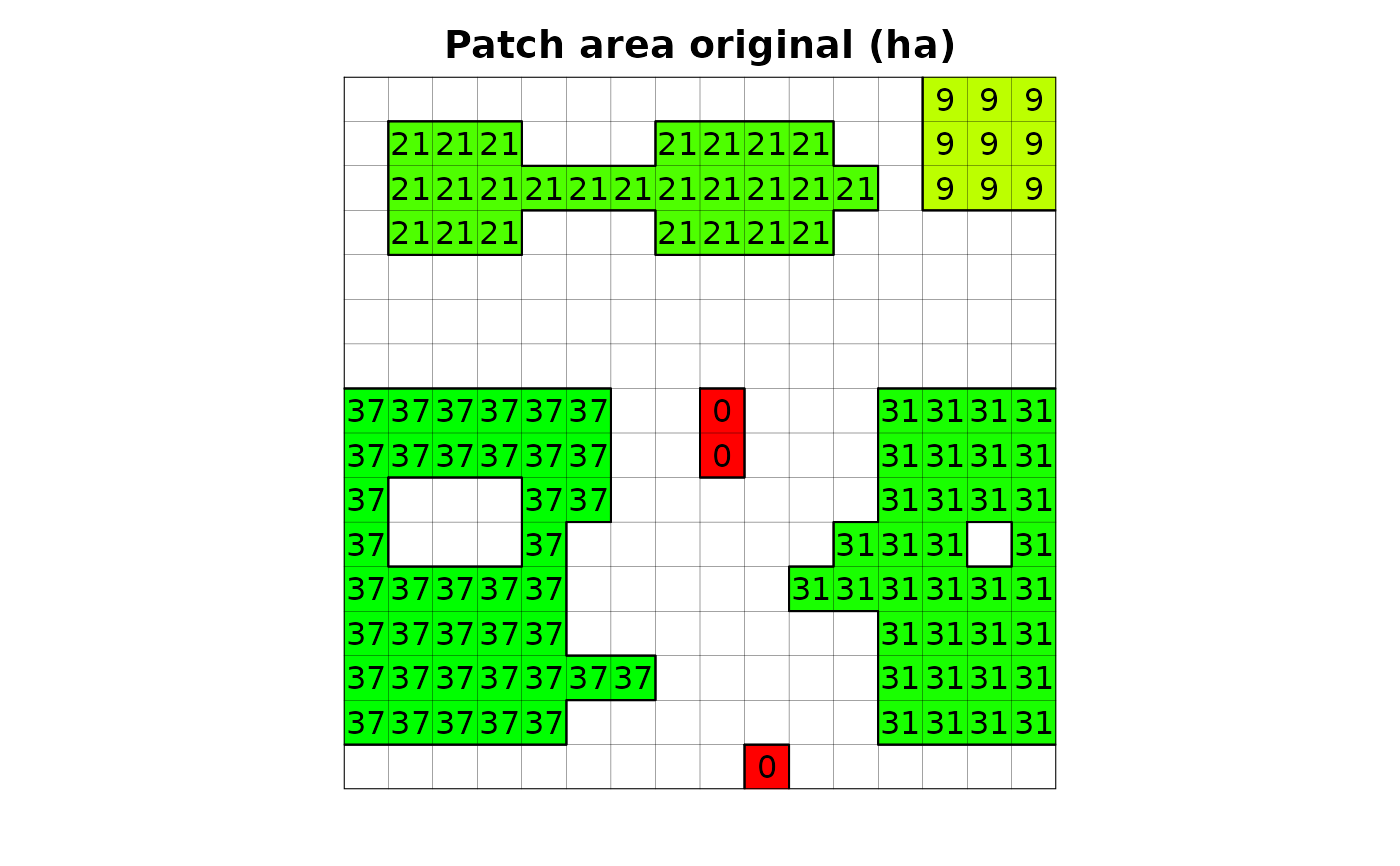

plot(r_patch_area_original, legend = FALSE, axes = FALSE, main = "Patch area original (ha)")
#> Error in h(simpleError(msg, call)): error in evaluating the argument 'x' in selecting a method for function 'plot': object 'r_patch_area_original' not found
plot(as.polygons(r, dissolve = FALSE), lwd = .1, add = TRUE)
plot(as.polygons(r), add = TRUE)
text(r_patch_area_original)
#> Error in h(simpleError(msg, call)): error in evaluating the argument 'x' in selecting a method for function 'text': object 'r_patch_area_original' not found

r_patch_number_original <- rgrass::read_RAST("r_patch_number_original", flags = "quiet", return_format = "terra")
#> Error in sanitize_layername(name = vname[i], type = "raster", mapsets = msp,     ignore.stderr = ignore.stderr): r_patch_number_original not found in mapsets in search path: PERMANENT

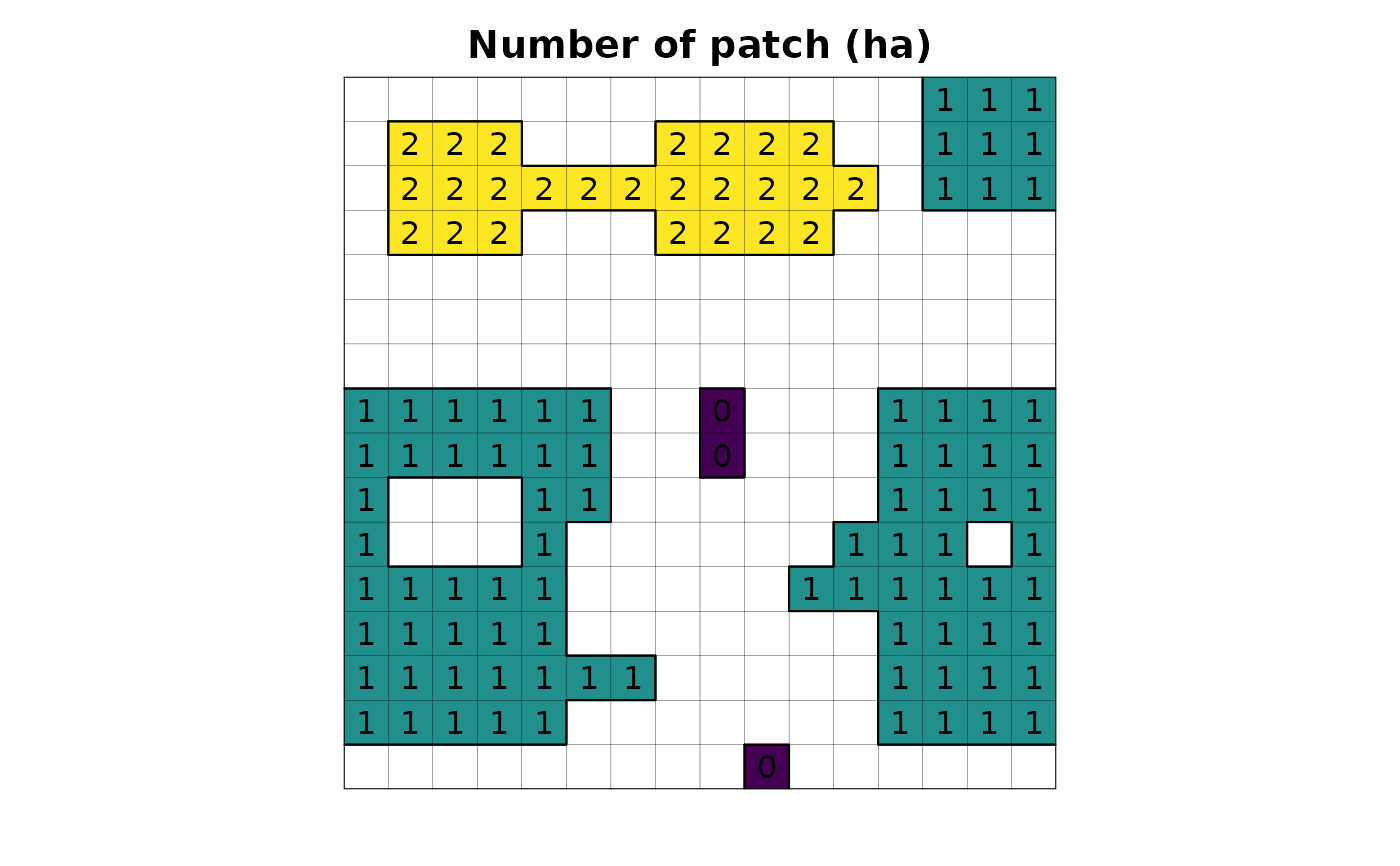

plot(r_patch_number_original, legend = FALSE, axes = FALSE, main = "Number of patch (ha)")
#> Error in h(simpleError(msg, call)): error in evaluating the argument 'x' in selecting a method for function 'plot': object 'r_patch_number_original' not found
plot(as.polygons(r, dissolve = FALSE), lwd = .1, add = TRUE)
plot(as.polygons(r), add = TRUE)

text(r_patch_number_original)
#> Error in h(simpleError(msg, call)): error in evaluating the argument 'x' in selecting a method for function 'text': object 'r_patch_number_original' not found

# delete grassdb
unlink("grassdb", recursive = TRUE)
